Crude Oil
Emulsion stability for separation, influence of surfactants for EOR, dynamic contact angle between oil/rock/liquid phases.
Precision Measurement Technology
Precision Measurement Technology

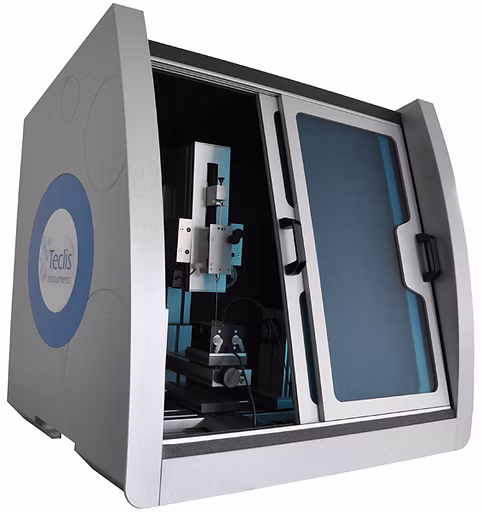

TRACKER™ Tensiometer
TRACKER™ calculates the dynamic surface tension between two immiscible fluids using Axisymmetric Drop Shape Analysis (ADSA), a precise numerical method based on the profile of a drop or bubble.
Understand the behavior of molecules and their interactions at interfaces
Assess the hydrophobic/hydrophilic character of surfaces
Differentiate the foaming and emulsifying properties of surface-active molecules
Capabilities
Full Range of Measurements
Pendant drop or bubble
Rising drop or bubble
Sessile drop
Captive drop or bubble
Temperature
Pressure
Surface tension (liquid/gas)
Interfacial tension (liquid/liquid)
Adsorption/desorption kinetics
Contact angle (liquid/solid)
Dynamic contact angle
Interfacial Dilatational Rheology
Viscoelastic modulus
Coefficient of rigidity
Automatic CMC

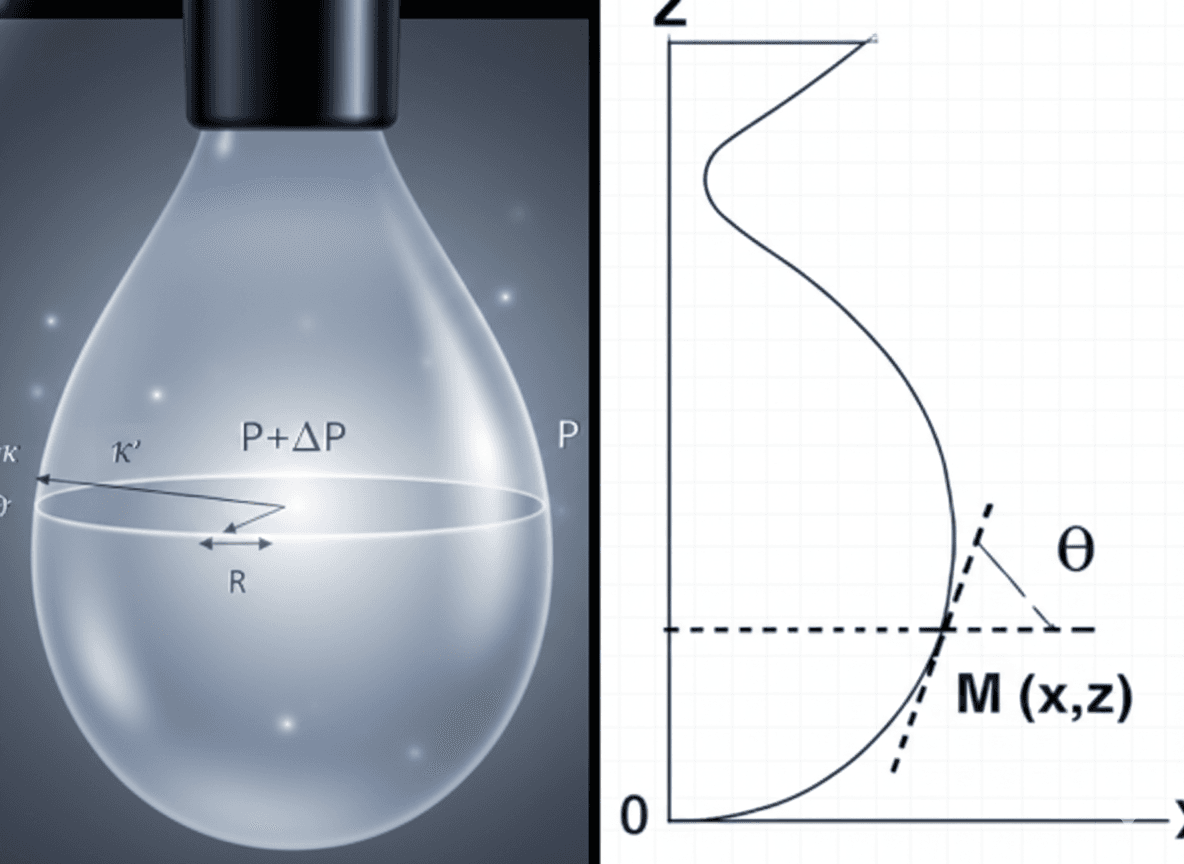

Laplace-Young Drop Shape Analysis
Drop Shape Analysis
TRACKER™ uses advanced algorithms to analyze the shape of liquid drops or bubbles, precisely calculating surface and interfacial tension according to the Laplace-Young equation. This enables accurate, reliable measurements even for challenging systems.
Smart & Flexible

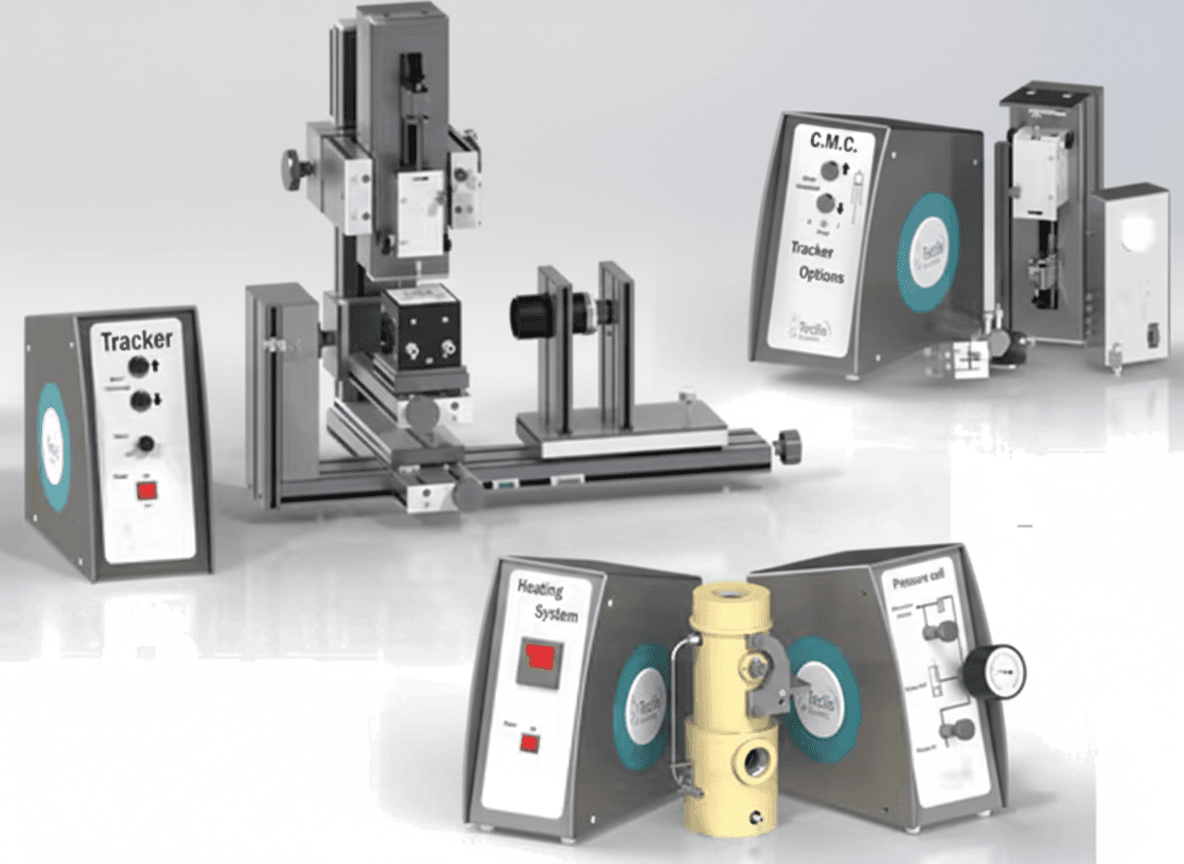

Smart Modular Design
Exchangeable optical cells for different temperature and pressure ranges
Automated liquid dispensing and drop formation
Integrated temperature control up to 200°C
Real-time video and image analysis
Upgradeable with interfacial rheology and contact angle modules
Applications
For Lots of Applications...
Cosmetics
Foam/emulsion stability, formulation, dynamic contact angle.
Pharmaceuticals
Encapsulation, gas solubility, emulsion stability.
Food
Food foams properties, stability of frozen emulsion (ice cream), influence of proteins, sugar or alcohol impact on the bubbles' size.
Fuel & Bitumen
Wettability, emulsion properties, dynamic contact angle.
Lubricant
Contact angle between lubricant/material, influence of surfactants on the wettability.
Optional Modules
TRACKER™ Modules
Enhance your TRACKER™ with specialized modules for advanced research and expanded capabilities.
TRACKER™ Dense Phase Exchange module
A double pump exchanges the liquid in the cuvette by another liquid while keeping the volume of the drop or bubble constant. The phase exchange can be automated or controlled manually. All regulations can be carried out during phase exchange.

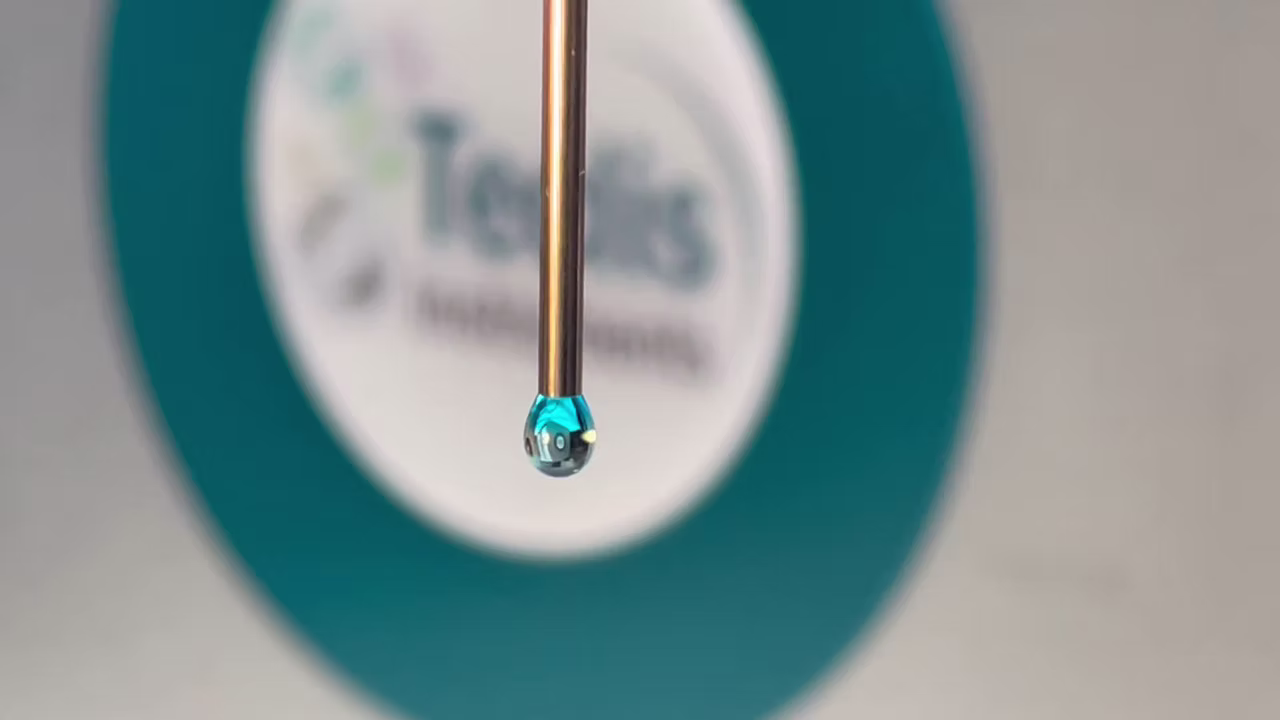

TRACKER™ Drop Phase Exchange module
A double injection system exchanges the liquid or gas in the drop or bubble by another liquid or gas while keeping the volume of the drop or bubble constant. All types of measurements can be performed during phase exchange.

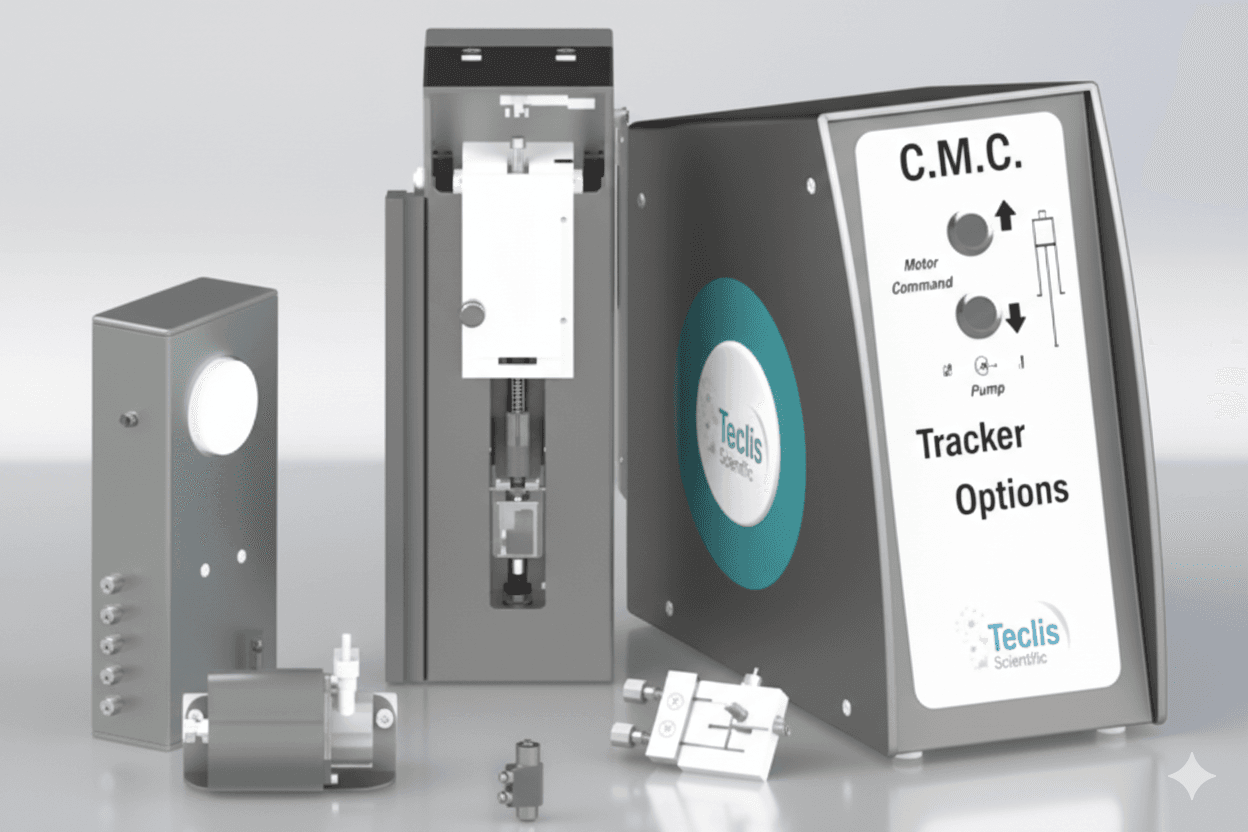

TRACKER™ CMC
An Automated critical micelle concentration measurement system is added to TRACKER™ standard. A second injection system allows to measure up to 4 solutions of different concentrations. The injected volume and concentration are determined by an algorithm that calculates the concentration steps in order to optimise the accuracy of the CMC determination. The drop volume control allows the volume of the drop to be automatically adjusted according to the concentration.

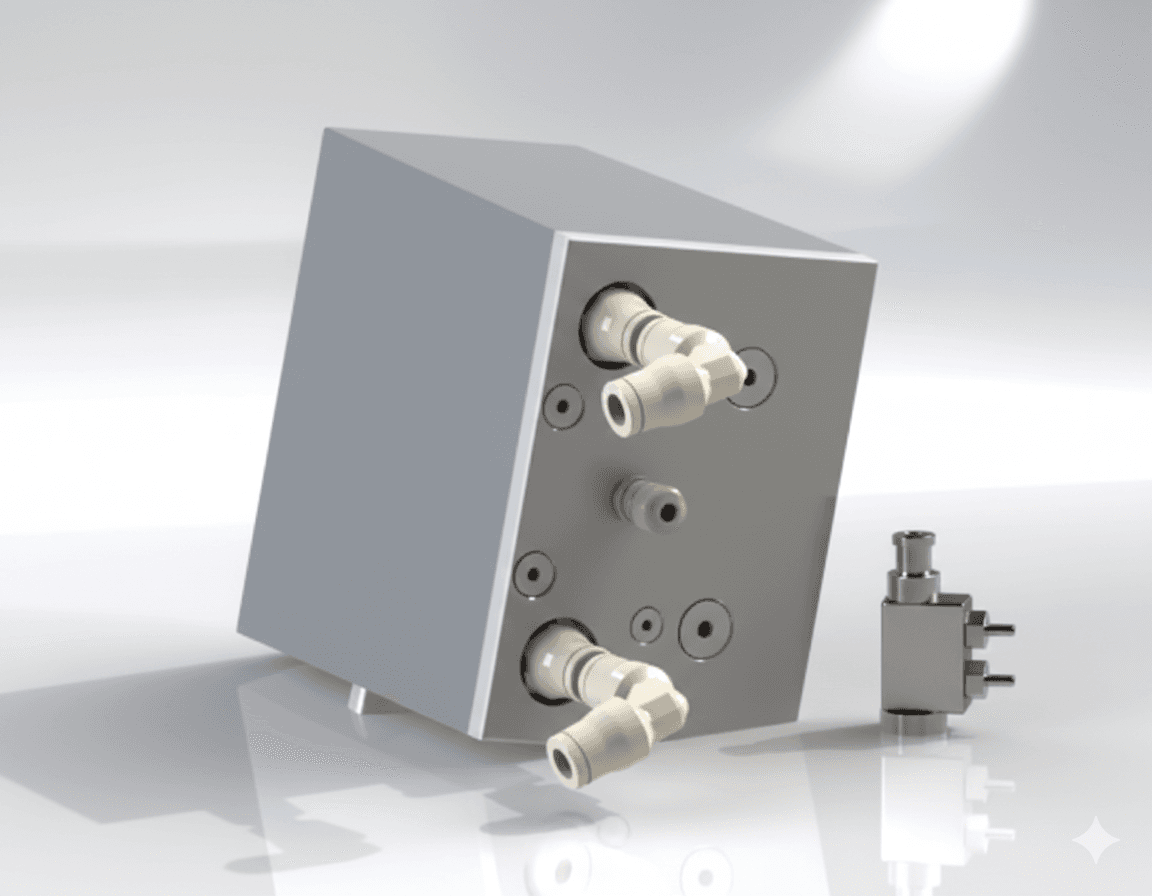

TRACKER™ Piezoelectric module
A piezoelectric ceramic is added to TRACKER™ standard to achieve an oscillation frequency up to 10 Hz.

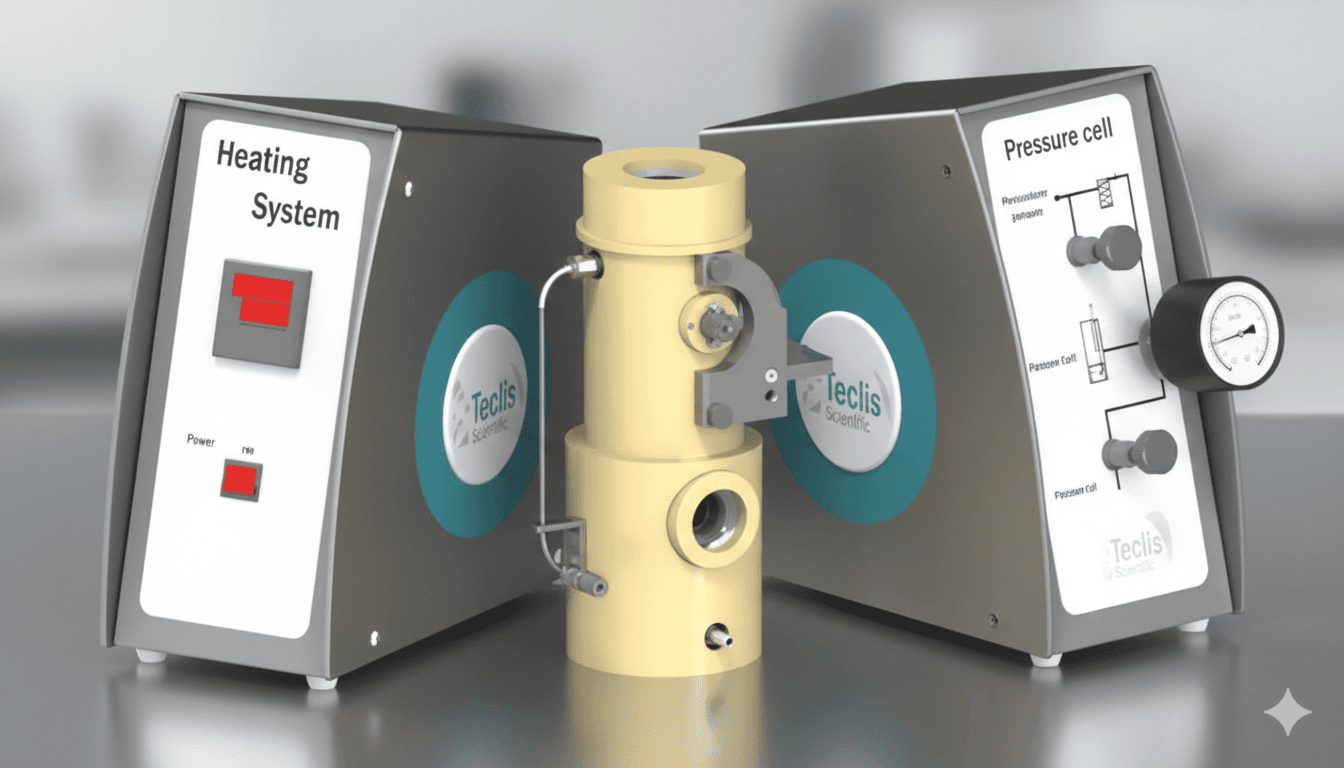

TRACKER™ Pressure Cell 200°C/200bars
A removable Pressure Cell for High Temperature and High Pressure measurements can be adapted to TRACKER™ standard. All measurements with pendant drop or rising drop, sessile drop or capture bubble can be performed.

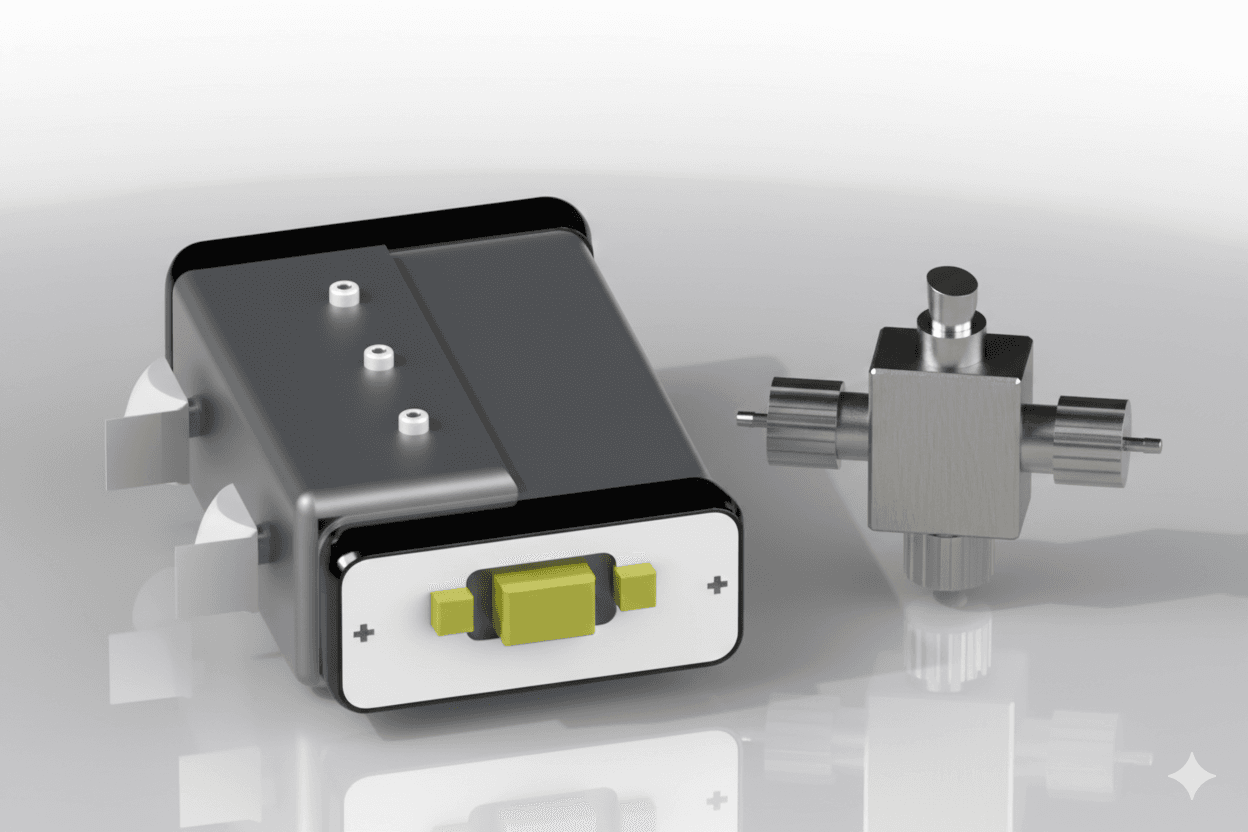

TRACKER™ Pressure Sensor
The sensor measures the hydrostatic pressure above the bubble in liquid or the pressure of a bubble of air in air (soap bubble). The pressure sensor is a good tool to characterize that a membrane has formed at the surface and that the interface is no more 'liquid'. Combined with the piezoelectric cell, the Pressure sensor is also used to measure surface tension at High frequency oscillations.
